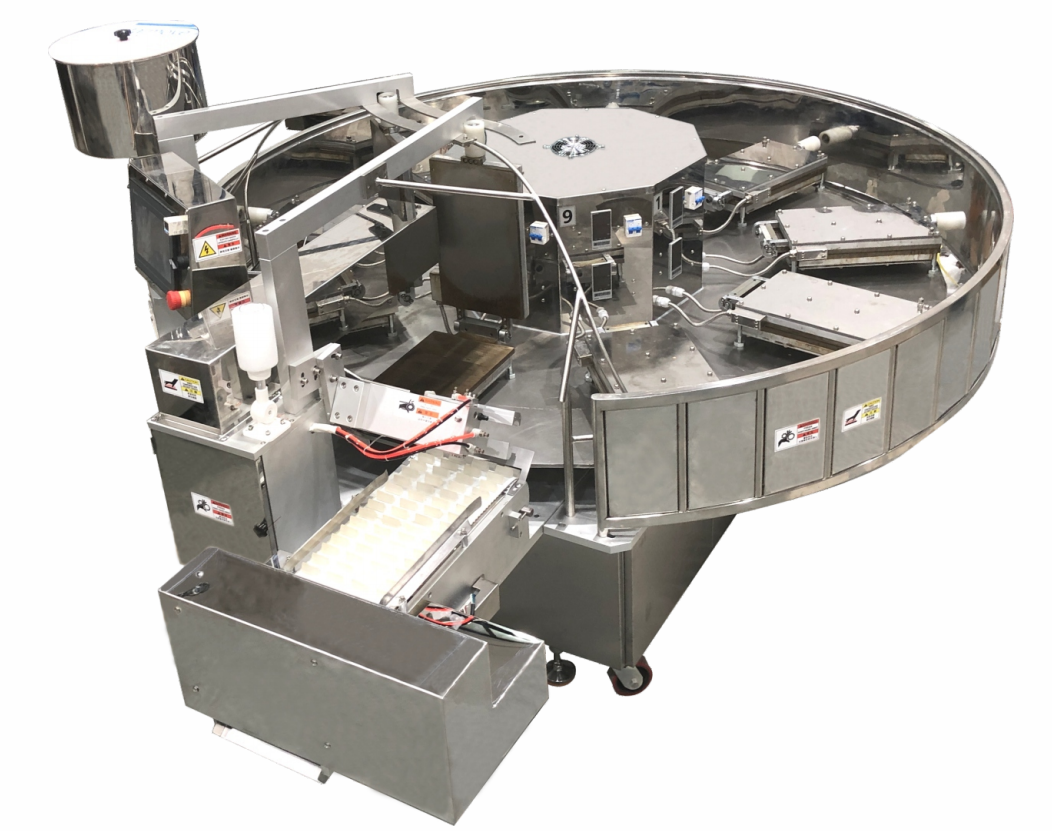

Rotary Egg Roll MachineUDTECH YT-02DJ
The YT-02DJ rotary egg roll machine provides a compact nine-mould route to standard rolls, automatically cut rolls, or cut rolls with sesame sprinkling. Our engineers configure the platform around your flour or batter, finished dimensions, utility supply and required acceptance output.
For sweet baked egg rolls and rolled wafers—not filled and fried savory spring rolls.
YT-02DJ / SYS
YT-02DJ quick view
9
rotary mould stations
500–600
documented pieces per hour
18 kg/h
documented mass output
2.7 × 2.1 m
machine footprint
Procurement commitments
YT-02DJ Commercial Terms at a GlanceQuote response
A 90-day production window does not remove scope risk because an undefined product can still produce an incomplete quote. UDTECH returns engineer-reviewed quotes within one business day on business days.
Production schedule
Production runs are scheduled within 90 days of the down payment, and shorter outside peak season, confirmed with your quotation.
Minimum order
One machine—single pieces are accepted.
Material trial
We arrange a trial run on your own flour or batter before the machine ships.
SYS_MAP // 02
UDTECH ENG
Egg Roll Equipment Identity Map
"Egg roll machine" pulls in unrelated equipment in global search. YT-02DJ deposits a sweet batter, bakes a thin wafer, rolls it while formable, releases it, then, according to configuration, can cut and sprinkle sesame; likewise, wafer research reveals formulation and baking conditions influence sheet dynamics.[6]
SEARCH LABELSNormalize search labels. Automatic egg roll machine, egg roll making machine, roll making machine and rolling machine overlap. Wafer roll, wafer stick machine and automatic wafer stick production line can describe other architectures, so map each label to the actual egg roll production steps.
RFQ PROTOCOLStart the RFQ with product identity. Send a finished sample or drawing, target length and diameter, wall thickness, surface pattern, color range, bite and whether cutting or sesame sprinkling is required.
FIG.01 // RIBBED ROLLS
EQUIPMENT CLASSIFICATION MATRIX
CLASS // 01
YT-02DJ rotary egg roll machine
PRODUCT WORKFLOW
Deposit sweet batter, bake, roll, remove, optional cut
USE IN THIS PAGE
Primary product
CLASS // 02
Continuous wafer-stick line
PRODUCT WORKFLOW
High-volume continuous baking and winding
USE IN THIS PAGE
Different scale and footprint class
CLASS // 03
Savory spring-roll line
PRODUCT WORKFLOW
Wrapper, filling, folding and often frying
USE IN THIS PAGE
Different process; throughput is not comparable
CLASS // 04
Tabletop appliance
PRODUCT WORKFLOW
Manual or foodservice-scale baking
USE IN THIS PAGE
Different buyer and duty cycle
Three Configuration Options and Quote Scope
As sold, we offer one rotary platform in three documented configurations. The choice affects discharge operation and quotation scope, so it should be fixed before the buyer’s acceptance trial rather than set as a later software parameter.
01
Standard
Across 3 options, the wrong choice creates discharge risk because the standard version omits cutting and sesame. UDTECH confirms the selection against the sample and quotation.
02
Automatic cutting
Adds automatic cutting for a defined finished length. We review the requested length and cut condition with the product sample.
03
Automatic cutting & sesame
Adds both cutting and sesame sprinkling. The buyer should define sesame coverage and include allergen-changeover requirements in the plant specification.
System Scope Directive //
For a broader line that mixes, forms, bakes and cools biscuit products rather than running a compact rotary rolled-wafer platform, review the baby biscuit production line.
ROTARY STATION
SYSTEM CONFIGURATION
Rotary multi-station workflow
Deposit, Bake, Roll and Optional Cut Workflow
STAGE 01 // STATION FOCUS

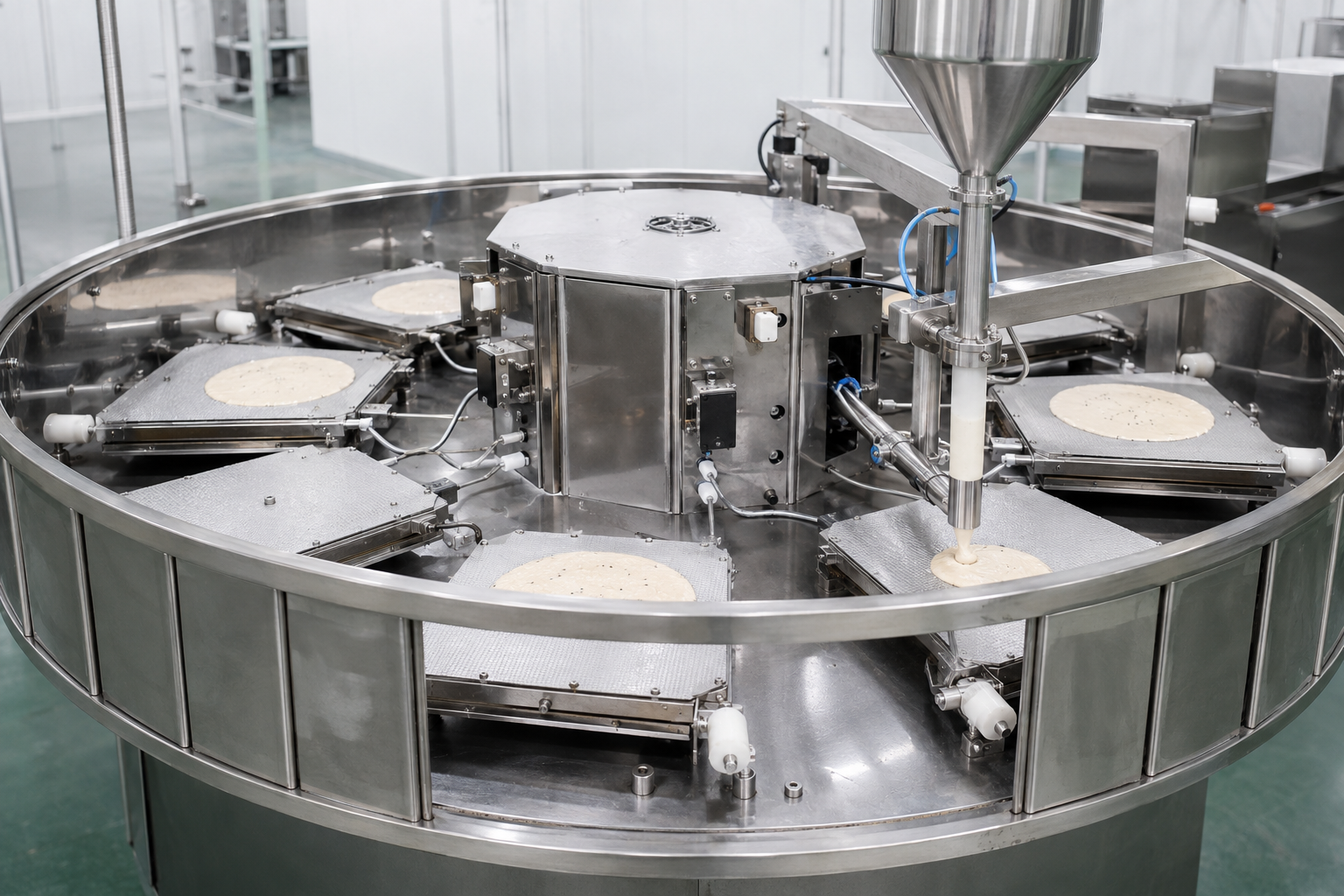

Deposit
Mismatch risk grows across 9 stations because the deposit must suit the target geometry. UDTECH sets up the requirement around buyer batter behavior.

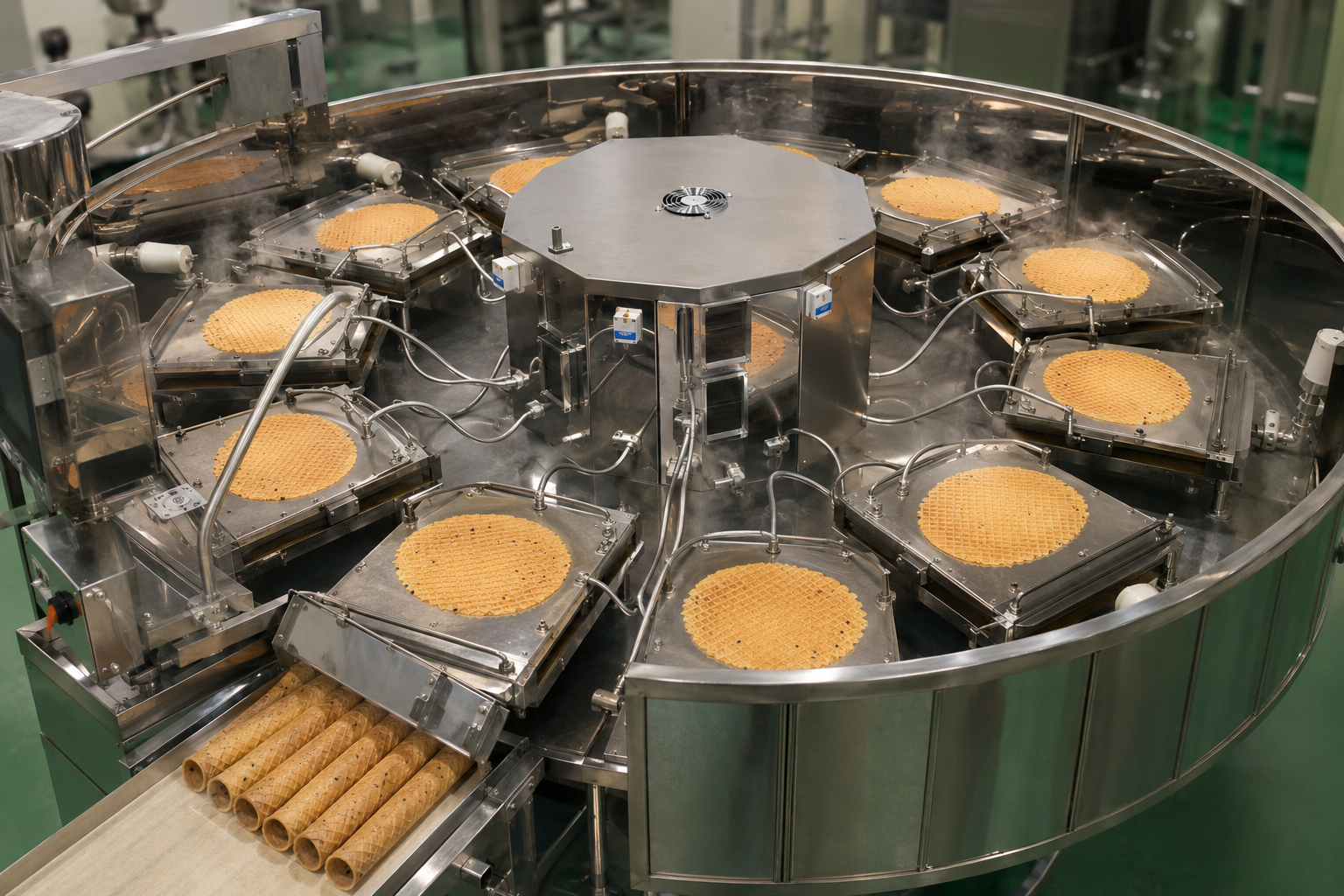

STAGE 02 // STATION FOCUS
Bake
Nine moulds rotate through independently heated stations under the intelligent temperature-control system.
STAGE 03 // STATION FOCUS

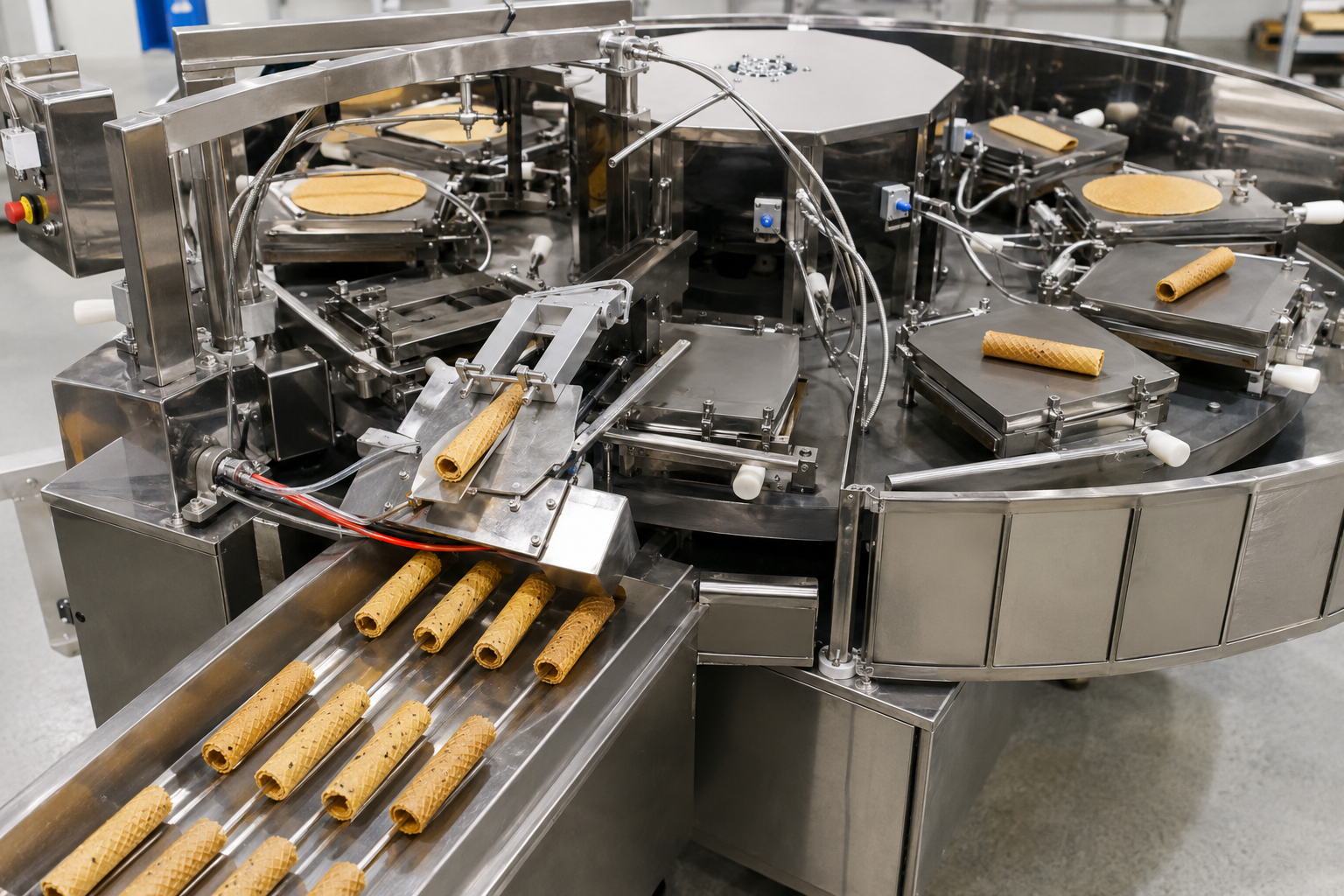

Roll and remove
PLC programming, servo linkage and photoelectric sensing coordinate roll forming and product removal.

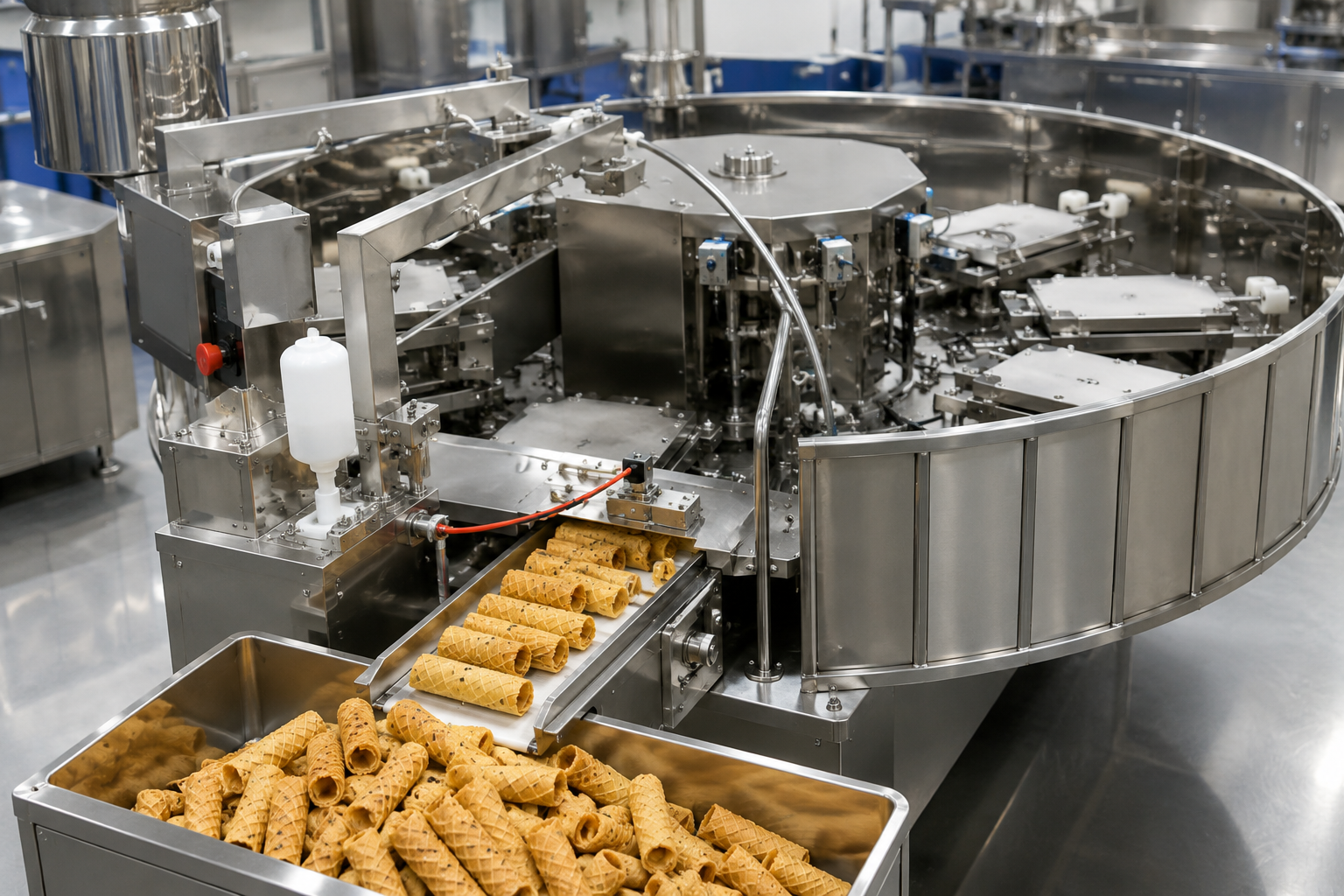

STAGE 04 // STATION FOCUS
Finish
The selected build releases a standard roll or adds automatic cutting, with sesame sprinkling on the third configuration.
Acceptance Protocol: Acceptance variables stay product-specific. A representative trial records batter, dimensions, output point, acceptable color and breakage; another machine’s experimental values do not transfer to YT-02DJ.
ROTARY EGG ROLL MACHINE
YT-02DJ Specifications and Utility Inputs
Use the documented figures to allocate floor space and utility provision, then add operator, service, extraction and electrical clearances to the site layout. A recommended equipment specification also defines the product, interfaces, performance, utilities and environmental conditions.
CORE DIMENSIONS
Mould stations
9
RFQ Check: Confirm finished format and configuration
Documented output
500–600 pcs/h
RFQ Check: Define accepted-piece measurement point
Documented mass output
18 kg/h
RFQ Check: Confirm product weight and batter
Machine envelope
2,700 × 2,100 × 1,500 mm
RFQ Check: Add operating and service clearance
Net weight
900 kg
RFQ Check: Check handling route and floor conditions
UTILITY INPUTS
Heating power
22.5 kW (9 × 2.5 kW)
RFQ Check: Confirm supply and site load
Transmission power
1.5 kW
RFQ Check: Confirm destination electrical standard
Power supply
Three-phase 380 V
RFQ Check: Confirm voltage, frequency and wiring
Compressed air
0.4–0.7 MPa
RFQ Check: Confirm quality, capacity and connection
Construction
Stainless-steel & aluminium
RFQ Check: Request food-contact details for the project
Quote Scope and Total-Cost Inputs
The configuration, mould design, buyer acceptance trial, destination electrical requirements, documentation, freight and site utilities may alter the delivered scope. Whole-project costing should also encompass utilities, cleaning and changeover labor, planned maintenance, parts, waste and downtime rather than purchase price alone.
Three assumptions to reject: rated output is not always saleable output. A larger production line is not always the better fit, and factory testing is not necessarily site acceptance. These boundaries are not interchangeable; the trade-off is fit versus headline scale.
FIG.01 // SESAME ROLLS
SCOPE DEFINITION PARAMETERS
REQUIRED INPUTS
Sample, dimensions, surface, color and bite.
REQUIRED INPUTS
Piece and mass target, shifts and acceptance point.
REQUIRED INPUTS
380 V supply, compressed air, space and access.
REQUIRED INPUTS
Cutting, sesame, testing, delivery and handover needs.
ENGINEERING RESOURCES
Cleaning, Changeover and Safety Review
We document the stainless-steel enclosure, aluminium-alloy structural components and control architecture, but appearance alone does not prove hygienic design or destination compliance. ISO 12100 and ISO 14159 supply applicable risk and hygiene design principles; the project review must establish what applies to the installed unit.
SEC.01
Guarding
Review access to forming, cutting, nip and rotating points. For covered U.S. workplaces, OSHA 1910.212 specifically addresses these machine hazards.
SEC.02
Energy control
Identify electrical, mechanical, pneumatic and thermal energy for cleaning, unjamming and adjustment. The applicable isolation or alternative protective method depends on the task and risk assessment.
SEC.03
Cleaning and allergens
Define food-contact parts, access, tools, allowed chemicals, inspection points and sesame changeover acceptance. Request measurable procedures rather than inferring cleanability from exterior material.
OPTICS: ACTIVE // ENCLOSURE SCAN
Factory Trial, Acceptance and Handover
A sample flour or batter trial can lower product-fit risk, but factory testing and installed-site acceptance answer different questions. We agree the trial inputs in the quotation; the buyer should separately specify any required site tests, documentation, training or installation scope.
A scope gap appears because a 500–600 pcs/h catalogue value cannot define the accepted product, test duration or installed utility behavior. UDTECH confirms the material-trial boundary in writing.
PHASE_01
Send inputs
Provide product sample, flour or batter details, dimensions, output target, configuration and utilities.
PHASE_02
Review fit
We check YT-02DJ against the product identity, mould needs, 380 V supply, air pressure and footprint.
PHASE_03
Confirm quote
We state configuration, commercial commitments and the agreed material-trial scope in writing.
PHASE_04
Record acceptance
Use the approved product, output basis, defect boundary and test duration to judge results.
Selection Rule //
Approve the product and acceptance boundary first; then freeze the configuration, utilities and commercial scope.
Compact Rotary Platform for One-Machine Starts
UDTECH positions YT-02DJ between manual foodservice tools and multi-ton continuous wafer lines. UDTECH documents the list below, while an ISO 12100 risk review remains part of the installed project.
Compact industrial envelope
UDTECH’s 2,700 × 2,100 × 1,500 mm rolling machine gives buyers a defined layout start without entering a multi-ton continuous line class.
Nine-station control
We use nine 2.5 kW heating modules with PLC programming, multi-channel servo linkage and photoelectric sensing.
Established manufacturer
UDTECH has manufactured food machinery since 2003, with production bases in Guangzhou and Xinyu.
When YT-02DJ Is Not the Right Platform
The wrong choice introduces production and compliance risk before the first batch. A buyer without a three-phase 380 V supply, compressed air or safe site clearance should resolve the site gap before ordering.
EXCLUSION // 01
Wrong food process
Choose another equipment class for savory wrapper forming, filling, folding or frying.
EXCLUSION // 02
Wrong capacity architecture
Review a continuous wafer-stick line when sustained volume and downstream automation exceed this compact rotary platform.
EXCLUSION // 03
Unresolved site or compliance gap
Do not freeze the order until the destination electrical supply, compressed air, layout, guarding and required documentation are confirmed.
Rotary Egg Roll Machine Engineering Tools
Rotary Egg Roll Machine FAQ
What products does YT-02DJ make?
It is for sweet baked egg rolls or rolled wafers. Choose standard, automatic cutting, or automatic cutting with sesame.
Is 500–600 pieces per hour guaranteed for every recipe?
The documented output is 500–600 pcs/h and 18 kg/h. Acceptance should name batter, dimensions, test duration, measurement point and defect limit.
What utilities are required?
Three-phase 380 V, 22.5 kW heating, 1.5 kW transmission and 0.4–0.7 MPa air are documented. Confirm frequency, wiring, air quality and site capacity.
Can UDTECH test our material?
Yes. We arrange a pre-shipment trial with your flour or batter against agreed product criteria.
How long does production take?
Within 90 days of the down payment, with shorter schedules outside peak season, as confirmed in the quotation.
