Choosing an Egg Roll Cookie Machine for Sweet, Crispy Cookies

An egg roll cookie machine makes a thin, crisp roll.

A thin, crisp wafer is rolled into a cylinder to make this product. The finished cookie is studied for shape, recipe and filling. Next, the equipment is assessed for handoffs and what’s done manually, and the cooled product is evaluated to see if it meets specifications.

Updated October 2026. This buying guide separates published machine ratings from trial results and provides two worksheets to compare a complete production cell.

Define the cookie before comparing machines

Sweet egg roll cookies are a crisp snack that needs a baking and forming process suited to their thin, brittle structure. Savory rolls use a different route involving wrappers and filling. Providing a whole sample, a cut section and a photo of the output is required before a discussion. A supplier can’t settle on the routes or the end product from the equipment name alone.

The table is a method for product identification, not a ranking for capacity. Flour blends, inclusions and filling change what the forming trial needs to prove. For an egg roll waffle with a patterned surface, show both sides of the baked sheet and the final seam.

What kind of machine can I use to make egg rolls?

A thin, crisp wafer is rolled into a cylinder to make a sweet rolled cookie. One product may require a thin wafer baking and rolling system, while another may require wrapping, filling and folding equipment to make a savory filled roll. A breakfast egg cooker makes yet another product. Decide on the product and process shown in a trial and compare production rates.

A restaurant making a few cookies beside other kitchen work has different handling needs from a dedicated bakery. A cookie depositor forms dough for an oven; it does not establish thin-sheet rolling capability. Ask the supplier to identify the batter feed, heating plate, release and forming steps on the offered model. Keep a copy of the approved sample so later changes can be checked against it.

What does automatic actually include?

Automatic operation describes specific food processing actions, not an entire factory. Baking plates may move and open automatically while a person still rolls each hot sheet. Unshown steps remain to be verified.

Six-Transfer Staffing Map

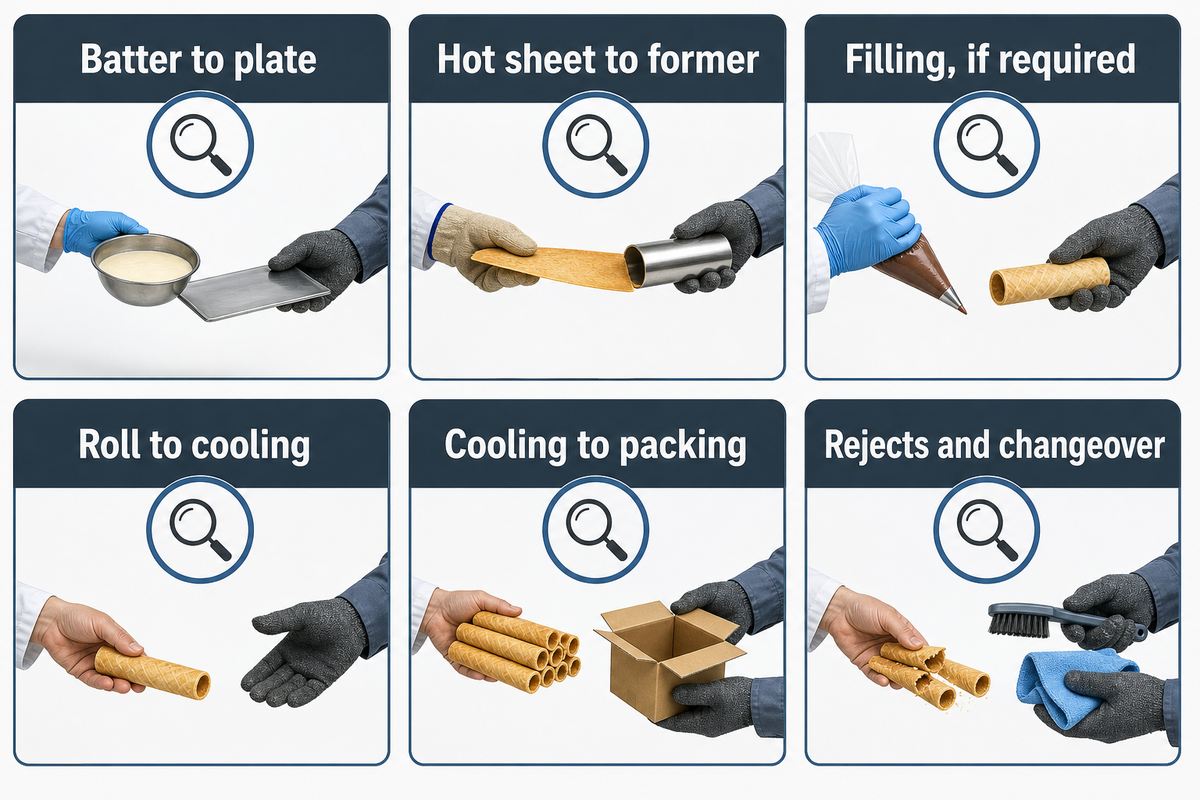

The Six-Transfer Staffing Map assigns a work owner and a proof requirement to each handoff between batter, baking, forming, cooling and packing.

Supplier completion fields: Offered model: __________; automatic transfers: __________; manual transfers and assigned operators: __________; unresolved scope: __________; demonstration date: __________. For each row, add the observed failure, its duration and who resolves it. The plant manager can then assign work, procurement can check whether the quoted hardware covers it, and quality staff can identify where the accepted product is counted. A blank row does not mean zero labor.

Imagine a trial in which the plates open automatically, but an operator removes and rolls each sheet. Your staffing map still shows rolling manually. Observe what happens when rolling and carrying cooling trays are combined. A clean demonstration of baking can’t resolve that overlap. A line may already automate those transfers; record the mechanism instead of assuming that every small machine needs the same crew.

To decide if an egg roll making machine will be efficient for your operation, name the work removed and the work retained. Some systems automate cleaning functions. Assess cleaning efficiency separately from production speed: routine operation, sanitation and maintenance are separate scopes.

Match the baking and forming route

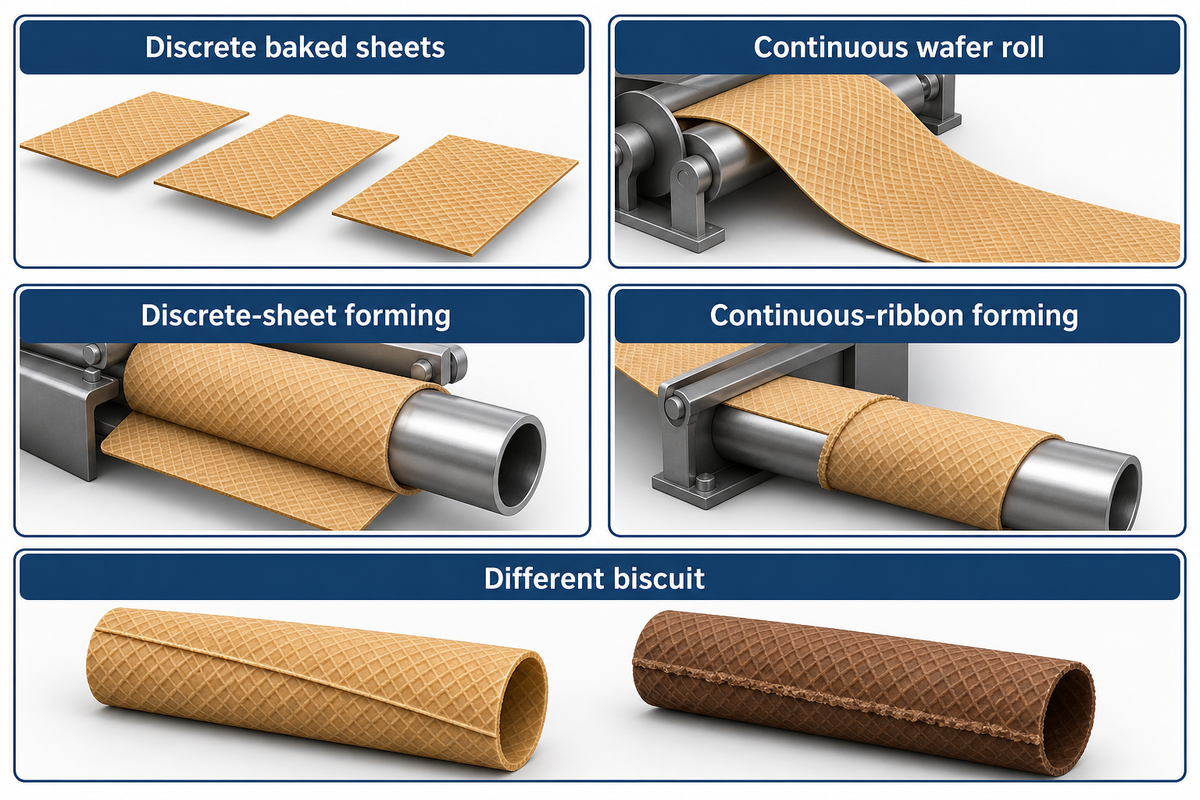

The baking route must reproduce the cookie’s geometry before its rated speed becomes useful. Rotary systems and plate machines are suited for discrete baked sheets. A continuous wafer roll machine forms a ribbon into tubes for high-volume production. Review the former, filling method and recipe together, since a faster route may result in a different biscuit.

Source basis: The information is from UDTECH’s publicly available product pages, checked in October 2026. These are manufacturer-listed values with different product and time bases, not a matched comparative test. The Continuous Wafer Roll Line page provides the UD05 specific details. Be sure to retain those model numbers when requesting a quotation.

Cases that justify postponing a machine choice

Postpone model selection if a supplier is unable to reproduce the required wall thickness or seam. A machine offered at 330 pieces/min isn’t necessarily better than one at 600 pieces/h when it makes a different product. A hollow sample doesn’t qualify a cream-filled sample. The filling method, cut section and final pack need to be part of the trial.

Postpone the comparison if a supplier names a model without providing a technical sheet. The YT-02G route needs to be taken on a project basis; a visually similar machine doesn’t address this gap. Also postpone the purchase decision when the proposed equipment cannot be placed with access for operators and cleaning. A drawing of the bare frame isn’t sufficient for this.

The next useful action is a sample trial or revised layout, not a larger motor or higher catalog speed. A versatile machine still needs to demonstrate each agreed product. Keep exclusions in the written offer so a later change in filling or geometry doesn’t alter the project without notice.

Compare output on your cookie and your shift

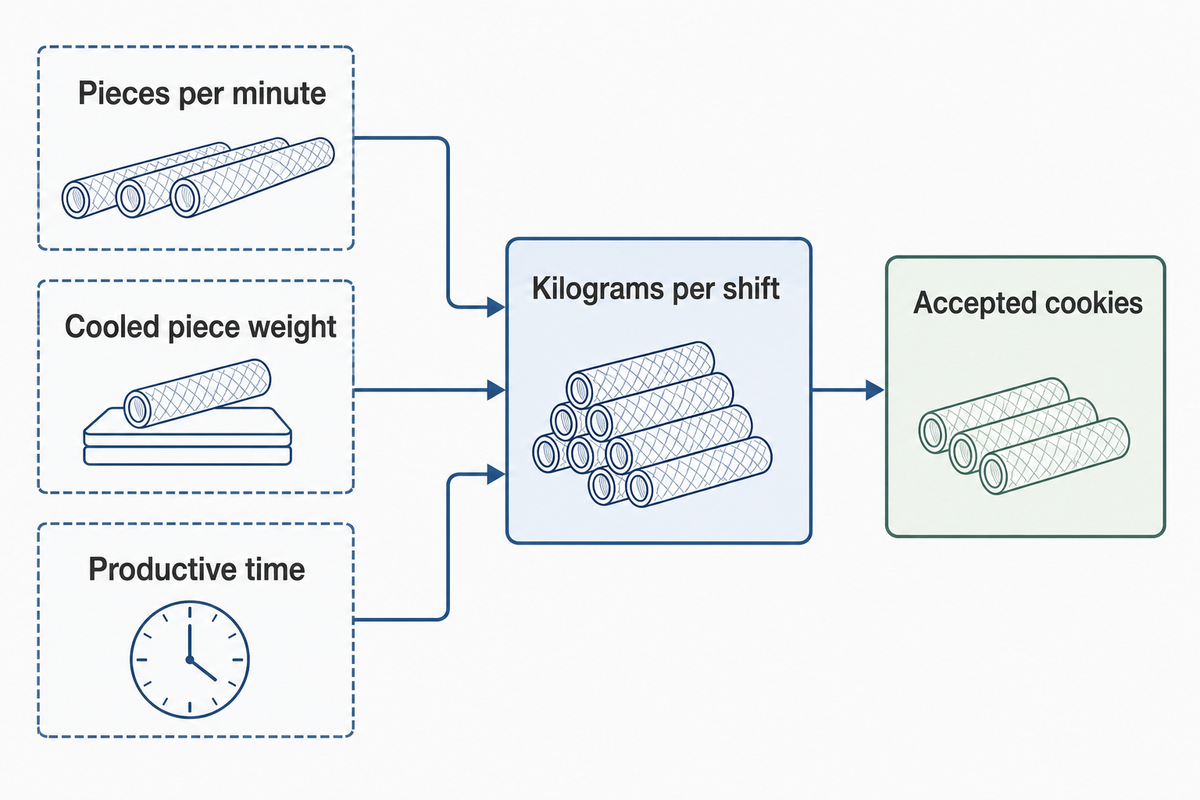

Similar output data should have the same cooled piece weight, filling condition, and time basis. Pieces per minute is a count rate; kilograms per shift also depend on mass of product and time of production. State whether each piece of data is based on all product discharged or only accepted cookies before conversion or applying a yield factor.

UDTECH publishes 220 pieces/minute and 600 kg per 8-hour shift for UD05-2. If both figures relate to the same product and continuous 480-minute production, 600,000 ÷ (220 × 480) equals approximately 5.68 g/piece. That is catalog arithmetic, not a measured cookie weight or proof of sustained output with your batter.

Take a hypothetical plan for a bakery aiming for 600 pieces/hour, 20 g finished cookie, and a productive time of six hours. Gross output = 600 × 20 × 6 ÷ 1,000 = 72 kg. If 95% of the output meets the acceptance criteria, the net output is 68.4 kg. If the planning figure of 600 pieces/hour already refers to accepted output, then considering the loss again in multiplying by 95% would account for the loss twice.

Matched-product run record: Recipe/sample ID: __________; cooled piece mass: __________ g; filling condition: __________; elapsed run: __________ min; accepted pieces: __________; rejects: __________; stop time: __________ min; people attending: __________. Be sure to describe the counting boundary with these values.

The arithmetic establishes a relationship for planning purposes. It does not show that a particular machine can bake a 20 g piece, maintain stable output at that rate, or achieve the assumed acceptance. Representative cooled samples should be weighed during the trial, and the fill mass should be held constant. More filling can increase kilograms per hour without increasing the number of wafers baked.

Use the existing guide to plan a shift around saleable output for detailed sizing, and trace output losses through the line when the bottleneck is after baking. This comparison needs one shared counting boundary, not another headline capacity number.

Approve the cookie before the production rate

A useful acceptance trial defines the sample and the point at which it’s judged. Agree on dimensions, color, filling and breakage criteria before timing output, then examine the cooled cookie in its intended package. Separate those product-quality checks from food-safety process validation and from storage-life testing.

NIST’s measurement traceability guidance explains why traceability alone doesn’t show fitness for a measurement task. Be sure to determine the instrument and method as well as the tolerances. For example, decide where to check for uniform thickness and whether piece mass includes filling; a scale reading without those definitions cannot resolve a disagreement.

A 2025 flat-wafer baking-plate study has shown differences in thermal distribution and wafer uniformity under its stated test conditions. It supports checking that the sheet bakes evenly at the intended rate. Its results do not establish a material upgrade, operating temperature or improvement percentage for UDTECH rolled-cookie equipment.

1. Freeze the sample — identify the formula, flour blend, geometry and filling condition.
2. Agree the test — define productive time, measurements, acceptance limits and who observes.
3. Run the proposed cell — record stops, interventions, gross pieces and accepted pieces.
4. Check the packed cookie — compare retained cooled samples and record the pack used.

Hygiene also relies on access and appropriateness of each contact part. A 304 stainless steel enclosure does not identify every food-contact component. Request the part specific material specification, the intended use of the non-stick coating, and an appropriate cleaning method. Heat-resistant parts still require a stated service limit.

“adequately cleanable”

The FDA food manufacturing practice framework covers more than the equipment surface. Under applicable US requirements, 21 CFR 117.160 addresses validation of preventive controls and lists exceptions. Have the responsible food-safety lead assess the process; a crisp, attractive sample does not establish its microbiological suitability.

Store samples for separate recipe-and-packaging storage work. A successful run on the purchase date can’t prove the cookie’s quality throughout the claimed shelf life. Discuss cleaning and maintenance planning to show access and restart tasks prior to equipment arrival.

Build a quote that includes the missing work

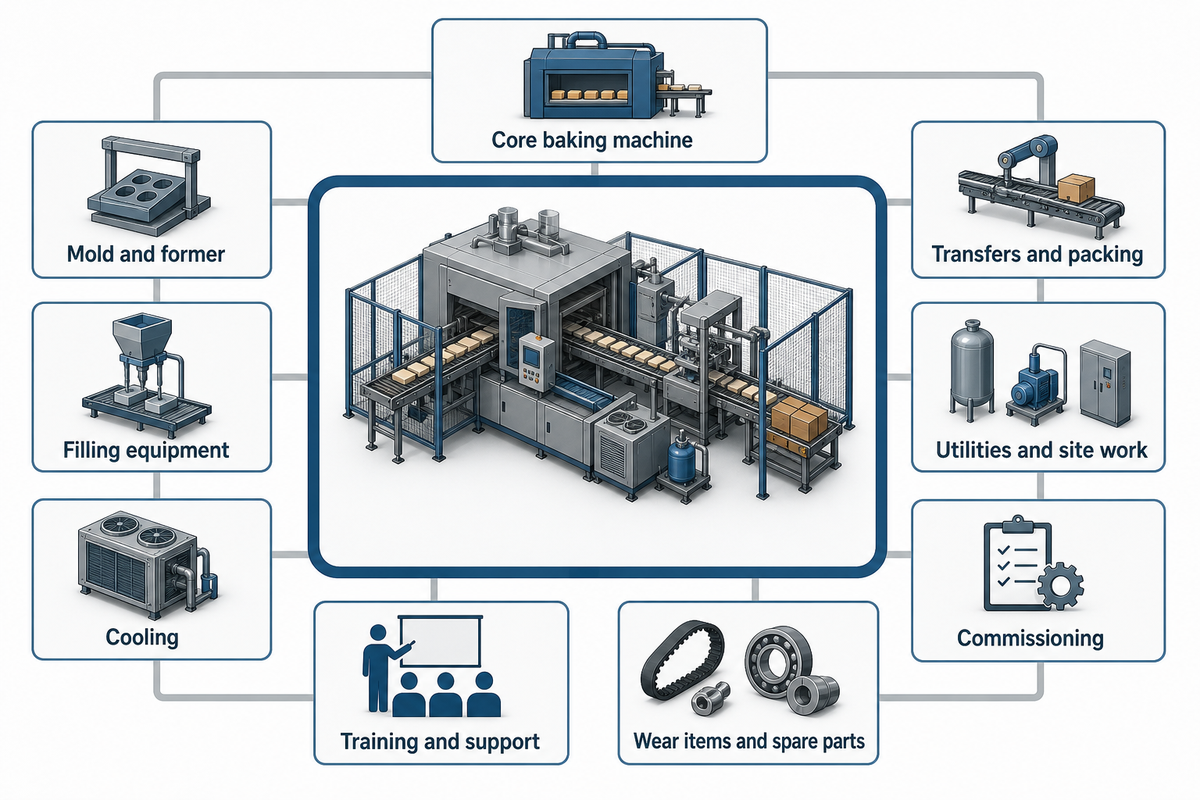

A complete quotation outlines the conditions used to price the project and the work to be performed by the buyer and equipment to be supplied by the seller. Cooling, transfer, and commissioning may be bundled together or performed separately. Request an explicit scope against the same cookie, output basis, and equipment to be supplied, before comparing the totals.

How much does a cookie machine cost?

The right price for an industrial egg roll cookie machine is a quotation for a specific product and scope. It isn’t a price band for generic cookie-cutter equipment. Indicate the forming route, required output and included handling, and request the machine price and installation items separately. This guide doesn’t set a current market price range.

A household maker, dough depositor, and wafer production line all do different jobs and therefore have different prices. A price for one can’t be substituted for another. A quotation, dated with the model, delivery terms, currency and validity, should be provided. Compare what’s included before comparing the headline price. Ask the supplier to provide a price for any work that isn’t included.

Same-Cookie Quote Split

The Same-Cookie Quote Split separates the core machine and product handling and site work so competing offers can be compared against one approved cookie.

For the budget owner, the US Department of Energy’s acquisition-cost method separates equipment and installation from energy, maintenance, repair, replacement and disposal. Those categories are useful here; the training’s federal purchasing rules and lighting examples aren’t bakery price evidence.

Suppose one proposed arrangement needs two additional operators for six hours, at an assumed total hourly cost of $20 per person. The additional shift labor would cost 2 × 6 × $20 = $240. That isn’t a local wage estimate or anticipated cost-savings. For support in determining whether a higher cost handling option would be warranted, consider your staffing observations and actual employment costs.

Choose a supplier that can prove product fit

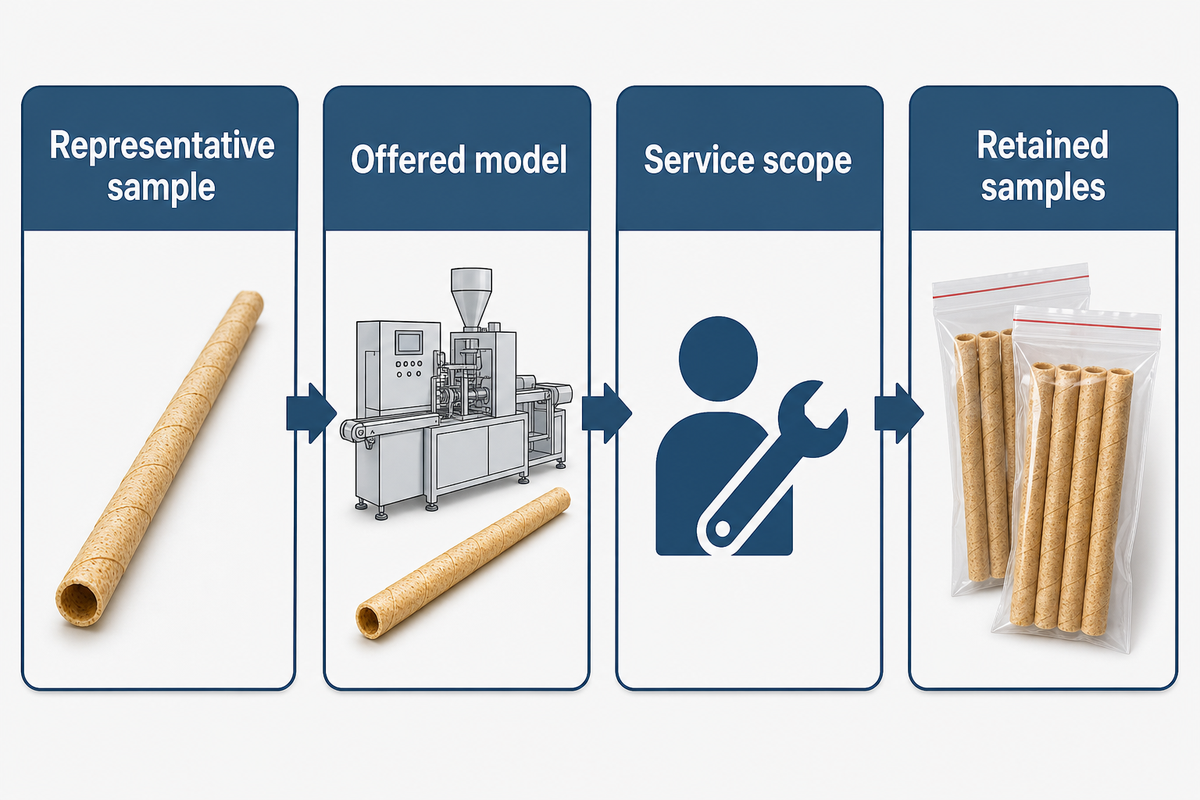

A short-listed supplier should provide a representative sample trial of the offered model and define the written scope of the service offered. Factory photographs, a marketplace listing or an automatic label cannot establish that connection. Confirm who supplies the machine, who supports it at your location and which exact build the demonstration represents.

Where can I buy an egg roll machine?

You can source a commercial egg roll machine from a machinery manufacturer or a distributor that can demonstrate the correct food process. Start with your cookie sample and required handling scope, then compare written offers. Marketplace listings can introduce suppliers, but the listing itself does not verify product fit or installation support.

For a UDTECH enquiry, review the automatic egg roll machine configurations and send the sample with your proposed shift and pack format. Verify the UDTECH company details against the legal entity on the quotation. Request the supplier to identify the tested model rather than showing a video of some other production line.

A recorded demonstration is most useful if the identity of the equipment, time and manual work remain part of the evidence. Retain samples from that run. If you request the supplier to customize the former or filling system, agree how that changed build will be checked before it’s sent; a test of the standard machine doesn’t settle the customized scope.

“This testing process also provides an opportunity to learn from the data generated.”

Howard’s observations regarding workcell planning and testing from an automation supplier’s perspective justify the request for useful evidence from a trial rather than support a specific cookie machine.

Connect the machine to cooling and packing

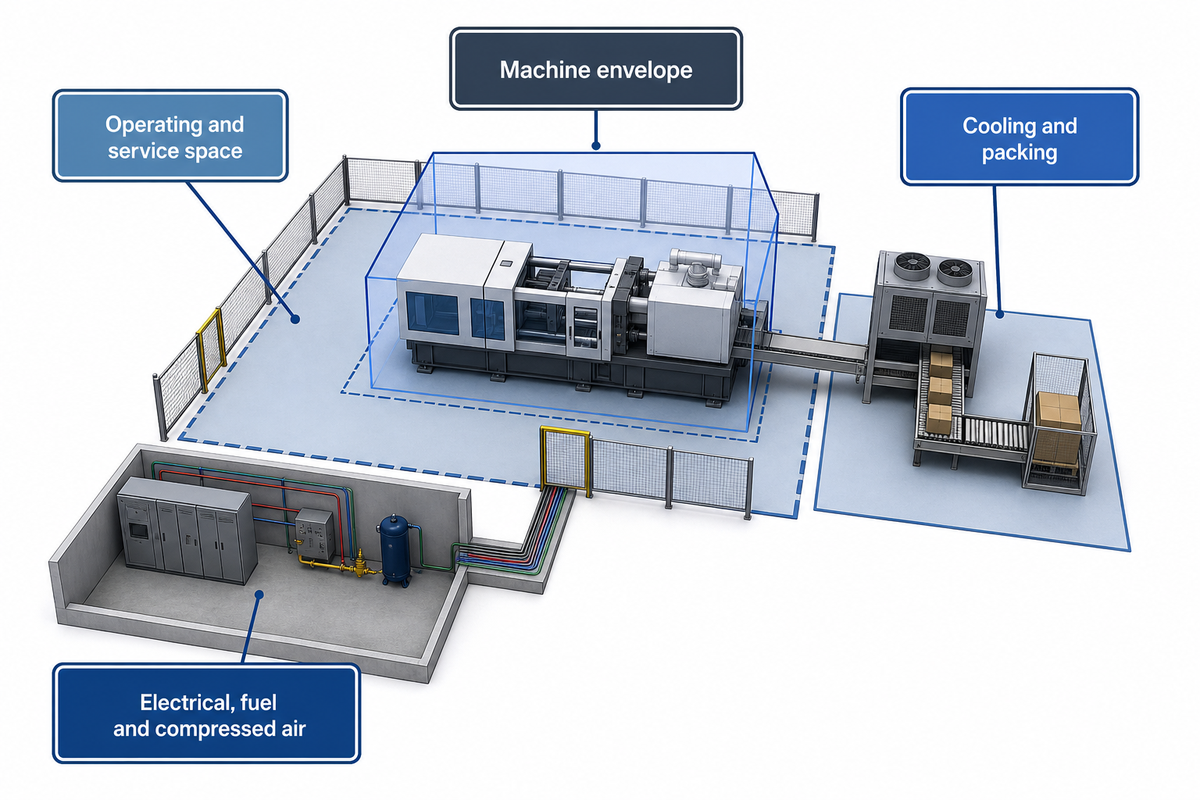

The machine, its utilities and the space needed to operate, clean and service it form part of the installed automation cell. Match cooling and packing to the agreed, accepted output rate, and draw the actual handoff points. Electrical, fuel and compressed air should be shown separately in the requirements definition and layout reviews.

The YT-02DJ rotary specifications list 22.5 kW heating, 1.5 kW transmission, three-phase 380 V and 0.4–0.7 MPa compressed air. The listed 2700 × 2100 × 1500 mm dimensions describe the machine envelope. Allow additional space for operating and servicing in the project drawing; those dimensions do not define the complete installed footprint.

On the separate UD05 line, the published 9.7/12 kW electrical figures sit alongside LPG consumption of 6/8 kg/h or natural gas of 8/10 m³/h. Treat LPG and natural gas as alternative fuel specifications and don’t add the two together. The site’s competent installer needs the connection schedule, air flow and burner details for the model selected.

According to the 2025 Carolina Foods automation report, packing and cooling are sequential activities. Its honey-bun and donut plant is not an egg-roll case, but the handoff question transfers: what reaches the packer, in what condition, and who responds if packing stops? Test the actual cookie and pack instead of borrowing that plant’s results.

For US projects, OSHA’s bakery-equipment requirements cover installation and safeguards for fuel, air and ignition failure protection for direct-fired ovens. Have qualified project personnel assess the combustion, emergency stop and guarding arrangements. This guide doesn’t assess that a listed model meets all the destination requirements.

The fields requested for your enquiry are given below. Numeric examples in the table are published YT-02DJ references and aren’t suggested limitations for every cookie line.
